片式水泥電阻 (SQF)

片式水泥電阻 (SQF)

傳統電阻

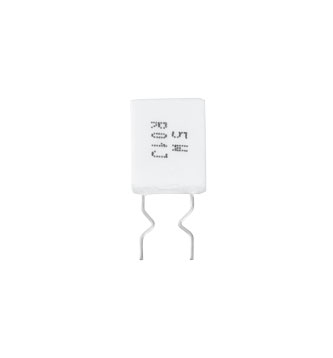

片式水泥電阻 (SQF)

原價:0

特價:0

數量/

TYPE: SQF-03 , SQF-05 , SQF-33 , SQF-55 ,SQF-77

CEMENT POWER RESISTOR
SQP (STANDARD TYPE)
SQM (RADIAL TYPE)

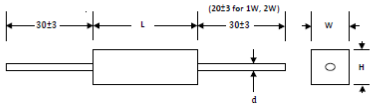

SQT (AXIAL)
SQZ(PCB  MOUNTING TYPE)
SQH SQS (CLAMP MOUNTING TYPE)
SQF (FLAT TYPE)

♦INTRODUCTION
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into
a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.

♦FEATURES

-Heat and flame resistant!
-The completely insulated characteristic is suitable for printed circuit board.
-For high resistance value, the winding core will be replaced by metal oxide film cutting core (RS type).
-High voltage type and non-inductive type are available on request!

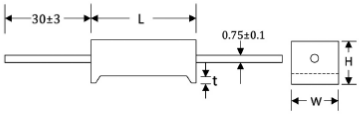

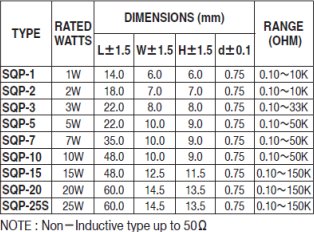

♦SQP



♦SQT

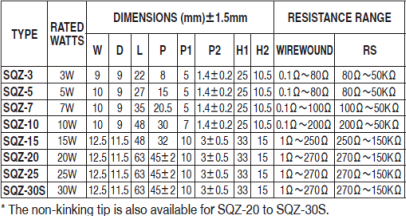

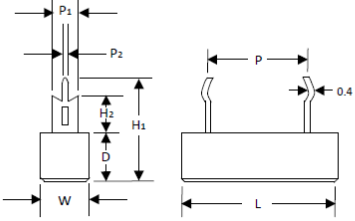

♦SQZ

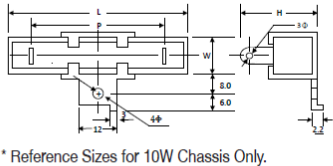

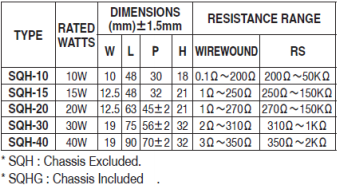

♦SQHG

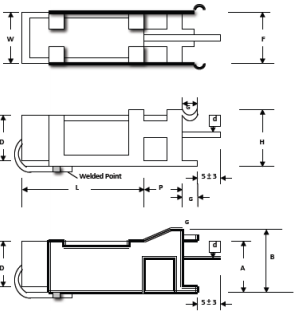

♦SQS

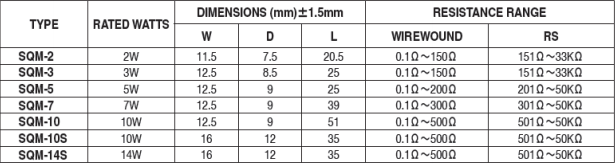

♦SQM





♦FEATURES
-Low inductance.
-Safety flameproof construction.
-Thin lightweight body saves the PCB space considerably.
-Tolerance available: ±10%, ±5%, ±2%

♦SQF



Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
istant cement.
