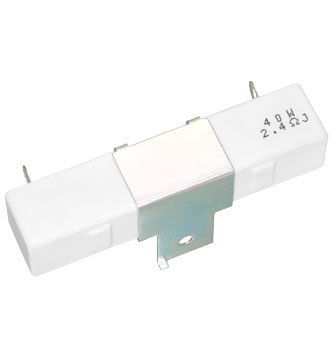

臥式水泥電阻 (SQHG)
TYPE: SQHG-10 , SQHG-15 , SQHG-20 , SQHG-30 ,SQHG-40
CEMENT POWER RESISTOR
SQP (STANDARD TYPE)
SQM (RADIAL TYPE)
SQT (AXIAL)
SQZ(PCB MOUNTING TYPE)
SQH SQS (CLAMP MOUNTING TYPE)
SQF (FLAT TYPE)
♦INTRODUCTION
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into
a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
♦FEATURES
-Heat and flame resistant!
-The completely insulated characteristic is suitable for printed circuit board.
-For high resistance value, the winding core will be replaced by metal oxide film cutting core (RS type).
-High voltage type and non-inductive type are available on request!
♦SQP
![](/userfiles/images/20210208032833304.png)
![](/userfiles/images/20210208032833199.png)
♦SQT
![](/userfiles/images/20210208032833379.png)
![](/userfiles/images/20210208032833179.png)
♦SQZ
![](/userfiles/images/20210208032833180.png)
![](/userfiles/images/20210208032833442.png)
♦SQHG
![](/userfiles/images/20210208032834958.png)
![](/userfiles/images/20210208032835358.png)
♦SQS
![](/userfiles/images/20210208032834305.png)
![](/userfiles/images/20210208032835994.png)
♦SQM
![](/userfiles/images/20210208032835675.png)
![](/userfiles/images/20210208032835621.png)
♦FEATURES
-Low inductance.
-Safety flameproof construction.
-Thin lightweight body saves the PCB space considerably.
-Tolerance available: ±10%, ±5%, ±2%
♦SQF
![](/userfiles/images/20210208032835118.png)
![](/userfiles/images/20210208032835157.png)
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
