臥式水泥電阻 (SQP)

臥式水泥電阻 (SQP)

傳統電阻

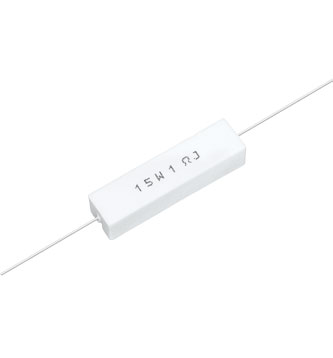

臥式水泥電阻 (SQP)

原價:0

特價:0

數量/

TYPE: SQP-1 , SQP-2 , SQP-3 , SQP-5 , SQP-7 ,SQP-10 ,SQP-15 , SQP-20 ,SQP-25S

CEMENT POWER RESISTOR
SQP (STANDARD TYPE)
SQM (RADIAL TYPE)
SQT (AXIAL)
SQZ(PCB  MOUNTING TYPE)
SQH SQS (CLAMP MOUNTING TYPE)
SQF (FLAT TYPE)

♦INTRODUCTION
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into
a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.

♦FEATURES

-Heat and flame resistant!
-The completely insulated characteristic is suitable for printed circuit board.
-For high resistance value, the winding core will be replaced by metal oxide film cutting core (RS type).
-High voltage type and non-inductive type are available on request!

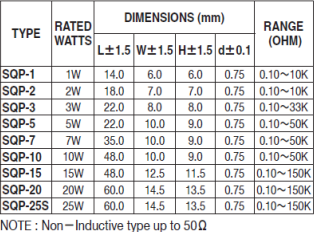

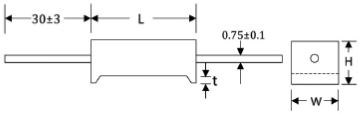

♦SQP

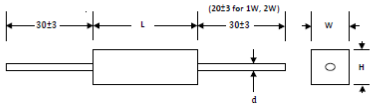

♦SQT

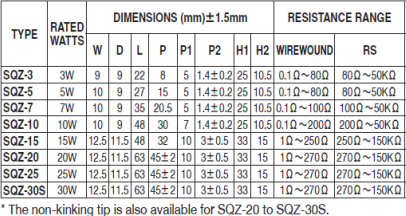

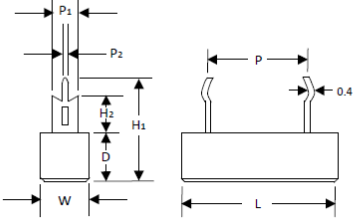

♦SQZ

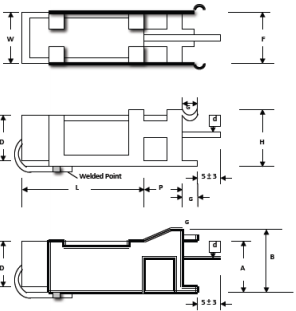

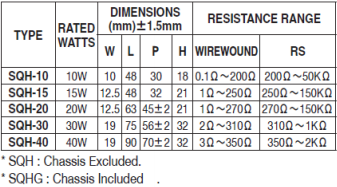

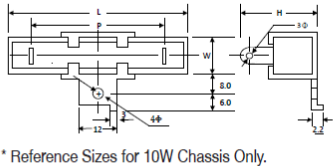

♦SQHG

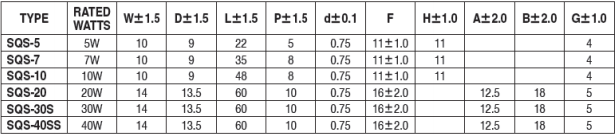

♦SQS

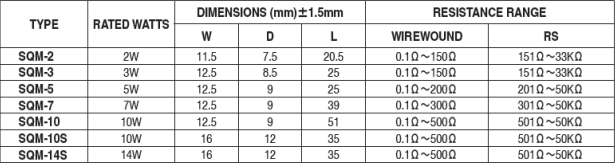

♦SQM





♦FEATURES
-Low inductance.
-Safety flameproof construction.
-Thin lightweight body saves the PCB space considerably.
-Tolerance available: ±10%, ±5%, ±2%

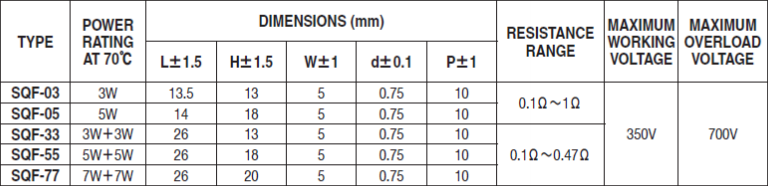

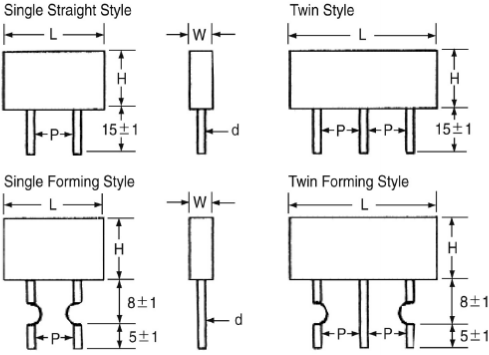

♦SQF





Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
