防爆式保險絲電阻 (RFB)

防爆式保險絲電阻 (RFB)

傳統電阻

防爆式保險絲電阻 (RFB)

原價:0

特價:0

數量/

TYPE: RFB-25 , RFB-50 , RFB-100 , RFB-200

FUSIBLE RESISISTOR
FRN(THIN FILM TYPE)        RFB(ANTI-BURST TYPE)
FKN(WIRE WOUND TYPE)     RFA(RATED CURRENT TYPE)

♦FRN

♦FEATURES
-Ideal circuit opening controller, disconnecting
units from overload rating specified.
-Flame retardant coating.
-Body coating is in gray or green, with 4 or 5
color bands or stamping.
-Too low or too high ohmic value can only be supplied case by case.

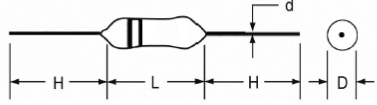

♦RATINGDIMENSIONS



♦FKN

♦FEATURES
-It is suitable for protecting circuit boards.
-Uniform in fusing time.
-Noncombustible insulation coating.
-Low temperature coefficient.

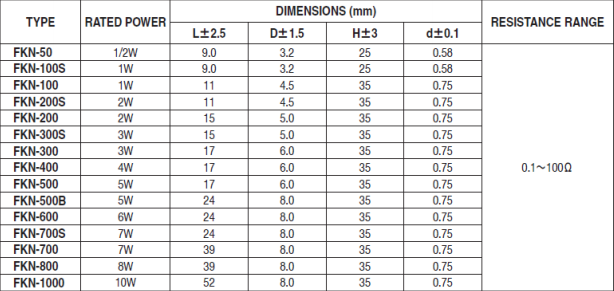

♦RATINGDIMENSIONS



♦RFB

♦FEATURE
The ANTI-BURST Type wire wound of film-type fusible resistors can provide reliable and environmentally safe fusing behavior It's also reliable in performance and endurance for surge voltage.

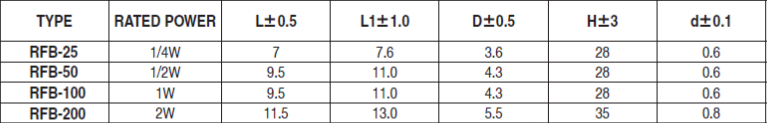

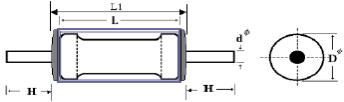

♦DIMENSIONS



♦FRA

♦FEATURES
-The rated current fusible resistor combines time delay
characteristics with proven reliability.
-Big electric current.
-High stability.

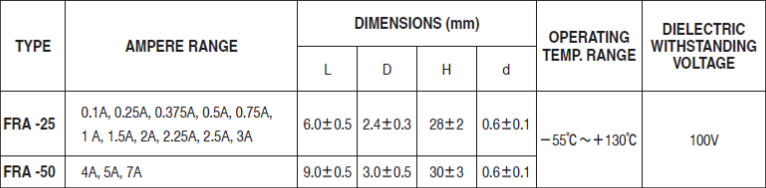

♦RATINGDIMENSIONS



The Anti-Burst Type wire wound or film - Type fusible resistors can provide reliableand environmentally safe fusing behavior, reliable performance and endurance tosurge voltage.

防爆式繞線或皮膜保險絲, 提供無爆裂與保護環境的安全熔斷特性, 準確的熔斷性能, 以及額定功率下作業的持久高穩定性.防爆式繞線保險絲 (RFB-TYPE) 通過UL認證, 提供無爆裂與保護環境的安全熔斷特性.
