高功率電阻 (CH)
TYPE: CH-5W , CH-10W , CH-15W , CH-20W , CH-25W , CH-30W , CH-40W , CH-50W , CH-60W , CH-80W , CH-100W , CH-120W , CH-150W , CH-200W , CH-250W , CH-300W , CH-400W , CH500W, CH-600W , CH-750W , CH-1000W , CH-1500W , CH-2000W

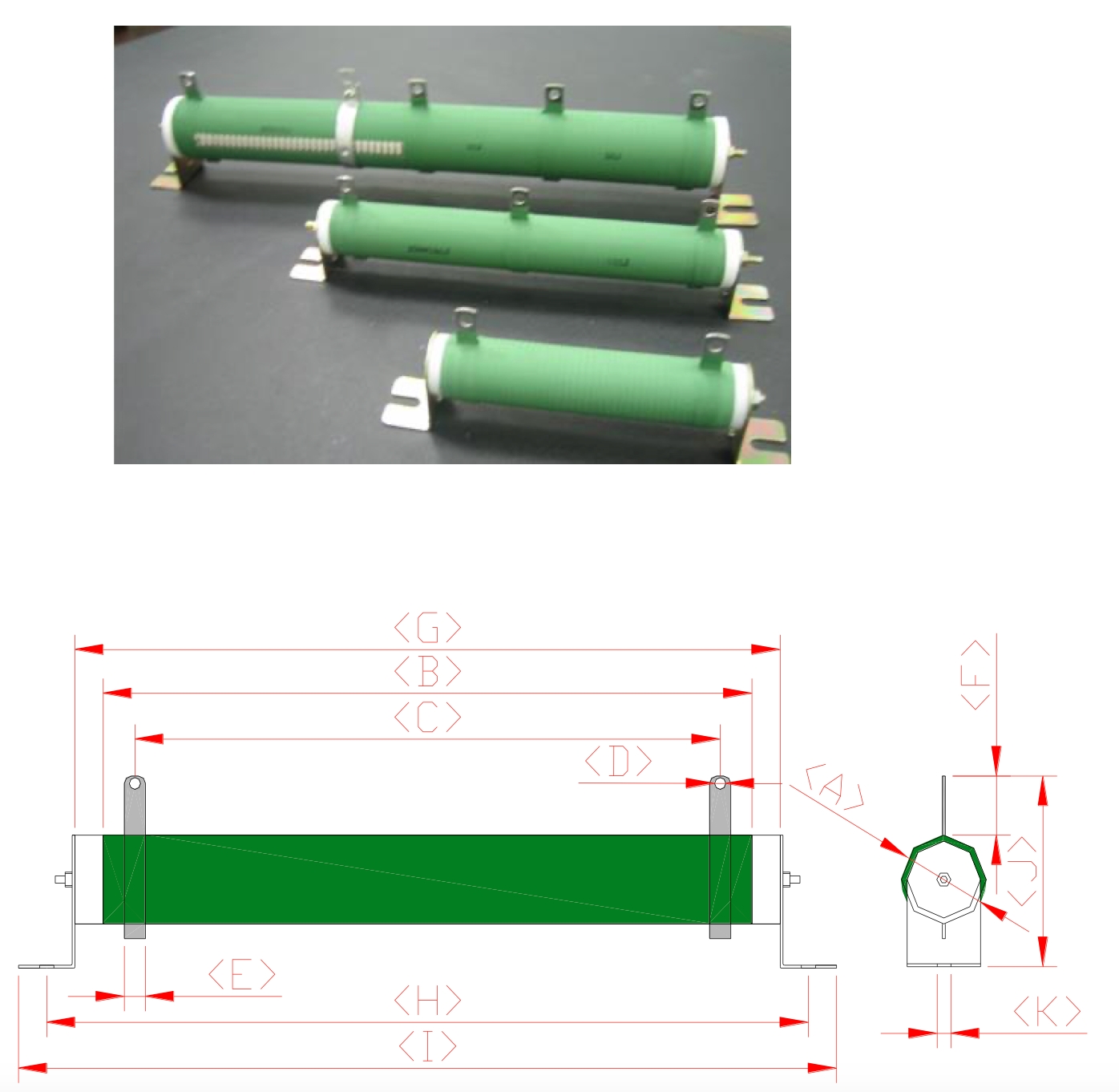

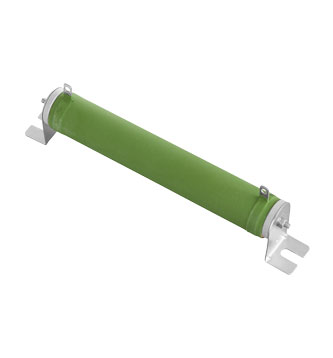

POWER WIREWOUND RESISTOR
CH&QH TYPE
♦FEATURES
-High resistance to heat, small resistance temp. coefficient and the change in resistance
with temperature is being linear.
-Resistance value unchanged after long use, good resistivity to short time overload.
-Small in size but capable of carrying high power load.
-Multi-terminal types and variable types available on request.

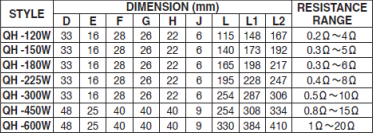

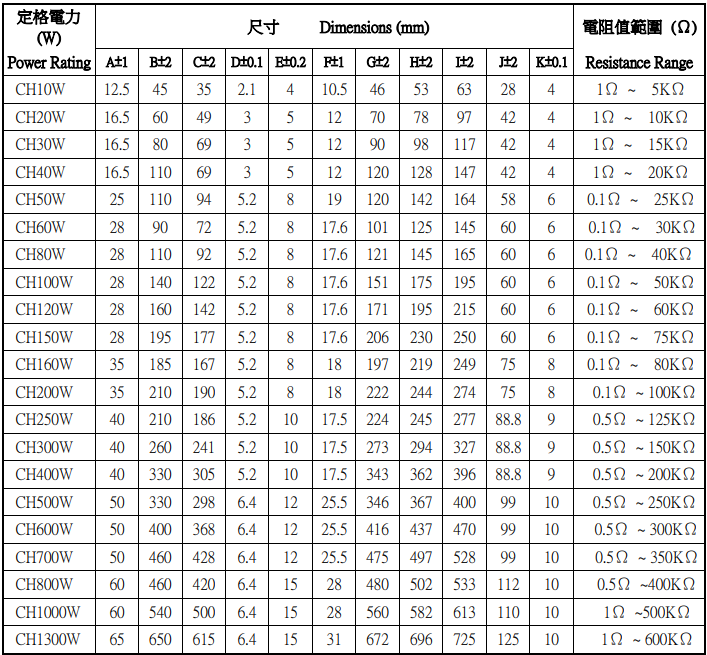

♦RATING&GENERAL SPECIFICATION

♦RIBBON WIREWOUND RESISTORS


Resistance value unchanged after long use, good resistance to short time overload.
Small in size but capable of carrying high power load.
Multi-terminal types and variable types available on request.

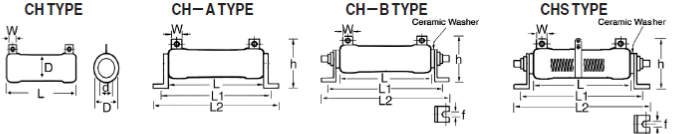

POWER WIREWOUND RESISTOR
CH&QH TYPE
♦FEATURES
-High resistance to heat, small resistance temp. coefficient and the change in resistance
with temperature is being linear.
-Resistance value unchanged after long use, good resistivity to short time overload.
-Small in size but capable of carrying high power load.
-Multi-terminal types and variable types available on request.

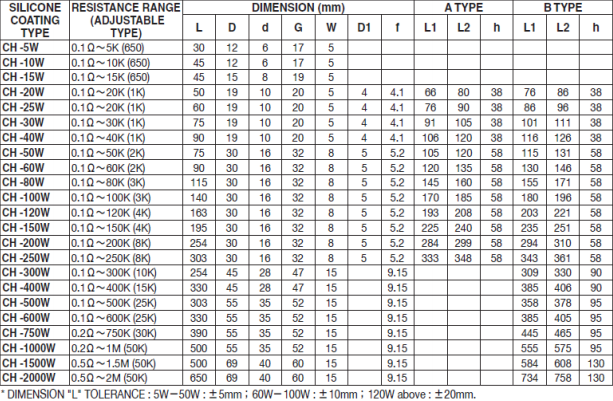

♦RATING&GENERAL SPECIFICATION

♦RIBBON WIREWOUND RESISTORS


Resistance value unchanged after long use, good resistance to short time overload.
Small in size but capable of carrying high power load.
Multi-terminal types and variable types available on request.
