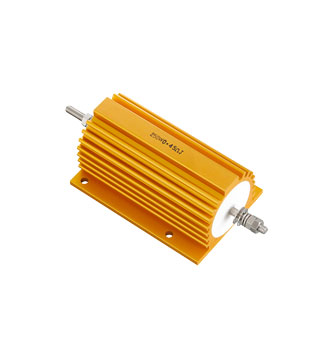

黃金鋁殼電阻 (AH_NAH)

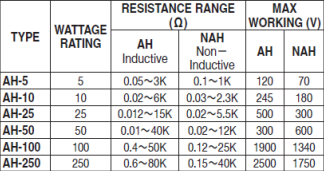

TYPE: AH-5 , AH-10 , AH-25 , AH-50 , AH-100 , AH-250 , NAH-5 , NAH-10 , NAH-25 , NAH-50
ALUMINUM POEWR RESISTOR
AH TYPE
♦FEATURES
-High power rating, small size and ultra precision.
-Standard winding＆non-inductive winding types.
-High stability, strong construction.
♦MATERIALS
Encapsulant: Silicon
End caps: Stainless steel
Core: Ceramic steatite or alumina.
Housing: Aluminum with hard anodic coating.
Element: Copper-nickel alloy, nickel-chrome alloy or manganese copper.
Standard Terminals: 5W Lead Wire, 10~50W Tined terminals, 100~250W Threaded terminals.

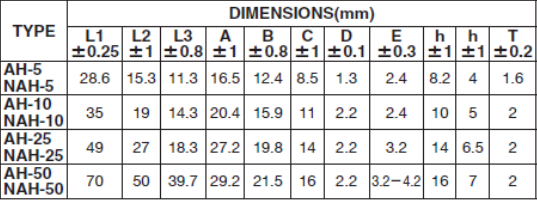

♦DIMENSIONS
High power rating, small size and ultra precision.
Standard winding & non-inductive winding types.
High stability, strong construction.
ALUMINUM POEWR RESISTOR
AH TYPE
♦FEATURES
-High power rating, small size and ultra precision.
-Standard winding＆non-inductive winding types.
-High stability, strong construction.
♦MATERIALS
Encapsulant: Silicon
End caps: Stainless steel
Core: Ceramic steatite or alumina.
Housing: Aluminum with hard anodic coating.
Element: Copper-nickel alloy, nickel-chrome alloy or manganese copper.
Standard Terminals: 5W Lead Wire, 10~50W Tined terminals, 100~250W Threaded terminals.
♦DIMENSIONS
High power rating, small size and ultra precision.
Standard winding & non-inductive winding types.
High stability, strong construction.
