鋁質電解電容(E/C)
TYPE：6.3V , 10V , 16V , 25V , 35V , 50V , 63V , 100V , 160V , 200V , 250V , 350V , 400V , 450V

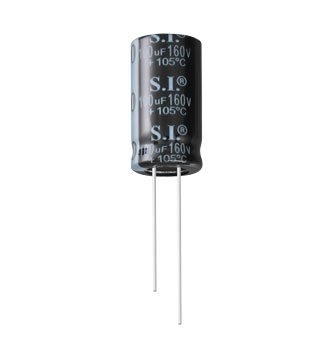

ALUMINUM ELECTROLYTIC CAPACITOR
E/C TYPE
♦FEATURES
-Safety vent construction design.
-RoHS Compliant.
-Used in communication equipments, switching power supplies, etc.
-For general purpose coupling, decoupling, bypassing and filtering circuit in entertainment electronics.

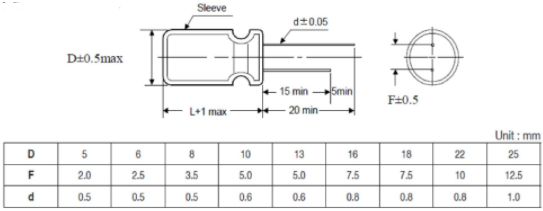

♦DIMENSIONS

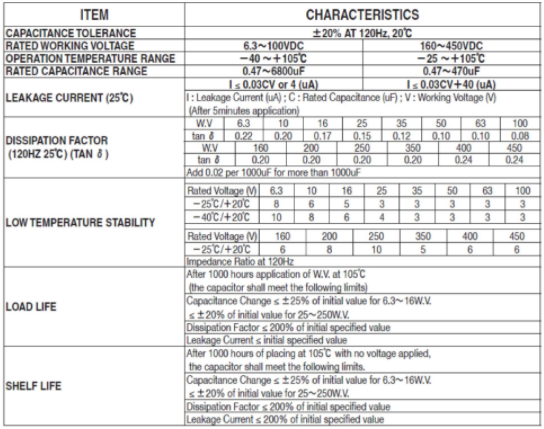

♦SPECIFICATIONS ![]()
♦SIZE LIST
The capacitor shall be applied with the full-rated voltage in series with 1000 Ohm resistor for a period of 1000 hours, while the capacitors are maintained at an ambient temperature of +85℃
ALUMINUM ELECTROLYTIC CAPACITOR
E/C TYPE
♦FEATURES
-Safety vent construction design.
-RoHS Compliant.
-Used in communication equipments, switching power supplies, etc.
-For general purpose coupling, decoupling, bypassing and filtering circuit in entertainment electronics.
♦DIMENSIONS
♦SPECIFICATIONS
♦SIZE LIST
The capacitor shall be applied with the full-rated voltage in series with 1000 Ohm resistor for a period of 1000 hours, while the capacitors are maintained at an ambient temperature of +85℃
